NEMA Electric Motors
- Choose from lightweight aluminum NEMA motor versions
- For versatile general-purpose applications and
- heavy-duty cast iron NEMA motors for demanding industrial use.
NEMA Electric Motors, which are predominantly used in North America depending on regional standards and regulations, are designed for a wide range of industrial drive applications – from pumps, compressors and fans to conveyors, machine tools, petrochemical plants and other general-purpose three-phase applications.
They provide dependable performance for standard industrial duties as well as demanding operating environments.

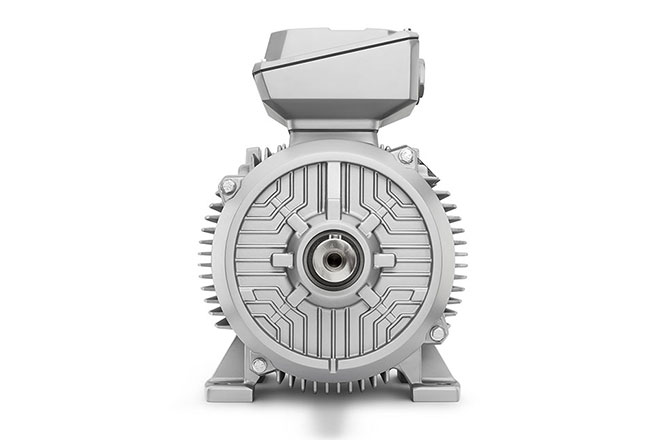

NEMA Aluminum Motors are a practical choice for general-purpose industrial applications where reliable operation, flexible use and efficient integration into machinery are required. Typical applications include pumps, compressors, fans, conveyors, machine tools, petrochemical plants and other three-phase general-purpose applications.
NEMA Cast Iron Motors are built for demanding industrial environments and applications requiring a robust motor construction. The motor series features a NEMA Premium Energy Efficiency Design and is EISA regulation compliant.
For applications requiring enhanced mechanical strength and long-term reliability, NEMA cast iron motors provide a robust configuration with heavy-duty cast iron fan cover, double lip shaft seal protection, tropicalized VPI lap-wound Class H stator, rubber shaft slinger for vertical application and oversized bearings.
The motors are suitable for conveyors, gear reducers and applications requiring Design C torque.
Certain versions are Class 1, Div 2, Groups A, B, C and D certified.
Your benefits
NEMA Premium Energy Efficiency Design and EISA regulation compliance support energy-conscious motor selection for industrial applications.
MG1 Part 31 compliance for VFD use with 15:1 constant torque capability supports applications where variable speed operation is required.
Multi-mount frame design up to 320T, F1/F2/F0 configurations, interchangeable C and D flanges and a 90° rotatable conduit box help adapt the motor to different machine layouts.
Oversized DE and ODE bearings and regreasable bearings with Zerk fittings from 254T and larger support reliable operation in industrial duty applications.
Technical Data
| Housing | Aluminum housing, cast iron housing |
| Efficiency | NEMA Premium Energy Efficiency Design and EISA regulation compliant |
| VFD suitability | MG1 Part 31 compliant for VFD use with 15:1 CT |
| Ingress protection | 2-part epoxy coating and IP55 ingress protection |
| Mounting | multi-mount frame design up to 320T with F1, F2 and F0 configurations |
| Terminal box | 90° rotatable full rubber gasket terminal box |
| Bearings | oversized DE and ODE bearings, with Zerk fitting regreasable bearings from 254T and larger |
| Ambient temperature | 40°C ambient temperature rating |
| Service factor | 1.25 service factor up to 50 HP and 1.15 for larger frames |
| Typical applications | Pumps, Compressors, Fans, Conveyors, Machine tools, Petrochemical Plants, Ventilation Applications and other General-purpose Three-phase Applications |
| Power ratings | ¼ HP – 250 HP |
