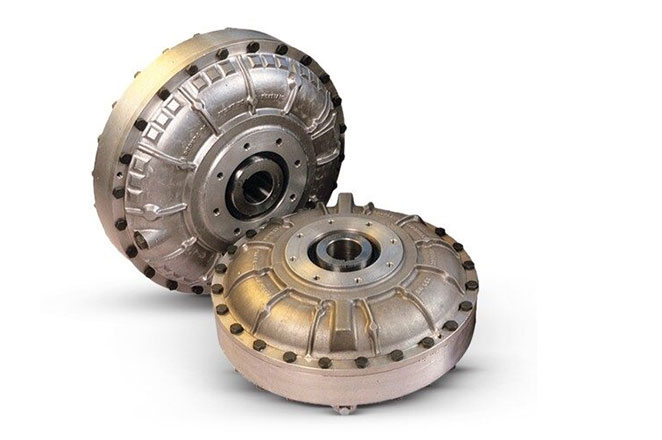

MOVICON Fluid Coupling
- Overload protection
- Smooth and shock‑free starting
- Nominal Output up to 2,500 kW
The MOVICON Fluid Coupling is designed for smooth, shock‑free starting of industrial drive systems exposed to high inertia and extreme load conditions.
Operating according to the proven Foettinger principle, torque is transmitted hydrodynamically through fluid circulation, with no mechanical contact between input and output components. This wear‑free power transmission limits starting and maximum torque, providing effective overload protection for the entire drivetrain. Controlled acceleration allows large masses to be started without oversized motors while reducing mechanical stress and energy consumption.
Excellent damping of shock loads and torsional vibrations protects the drive system against load peaks, frequent starts, reversing operation and sudden blockages. At nominal load, the coupling operates with very low slip of approximately 2%, ensuring efficient power transmission.
Designed as a functionally interchangeable solution, the MOVICON Fluid Coupling can replace fluid couplings from common market competitors in new installations and retrofit projects.
Explosion‑protected versions certified according to ATEX 2014/34/EU are available for hazardous environments.
Industries and Applications
- Crusher
- Nodulizer
- Roller Press
- Rotary Dryer
- Rotary Kiln
- Separator Drive
- Traveling Grate
- Agitator
- Digesters
- Mixer
- Process Applications
- Screw Conveyors
- Screw Press
- Slurry pump drives
- Apron Conveyors
- Apron Feeders
- Belt Conveyors
- Bucket
- Bucket Elevator
- Bulk Materials Handling
- Conveyor Drive
- Conveyors
- Elevator Drives
- Rotary Wagon Tippler
- Role Screen
- Screw Conveyors
- Slew
- Stacker Reclaimer Drive – Bucket Wheel
- Digesters
- Kernel Expellers
- Screw Press
- Crusher
- Ring Granulator
- Slurry pump drives
- Traveling Grate
Technical Data
| Power (kW/rpm) | up to 2,500 |
| Mass moment of inertia (kgm²) | up to 34,462 |
| Special features | Available as
|
Certified to perform
Delivered with 2.1, 2.2, 3.1
and TÜV Rheinland certification
as per standard.
